Content media
A section that displays content and visual

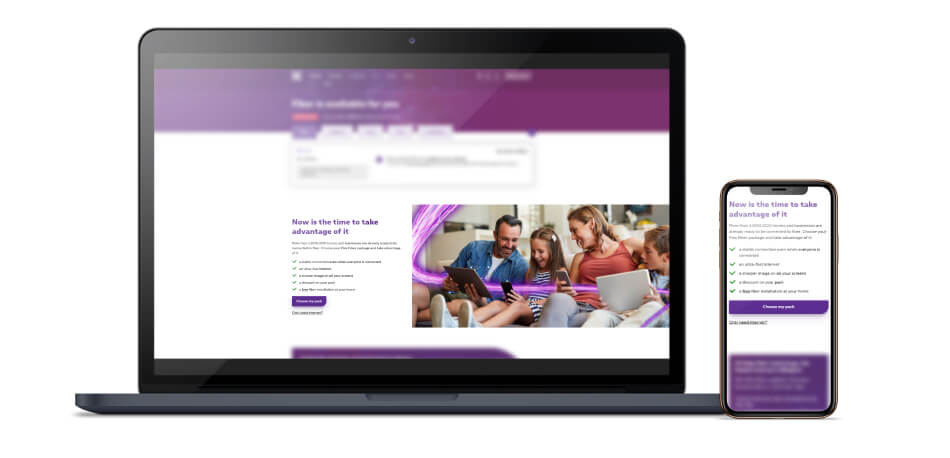

Overview
The content media is an entire section with content and a visual/video next to it. You can use a content media or multiple anywhere on your page and give all kinds of information.
Live demo (For Proximus employees)

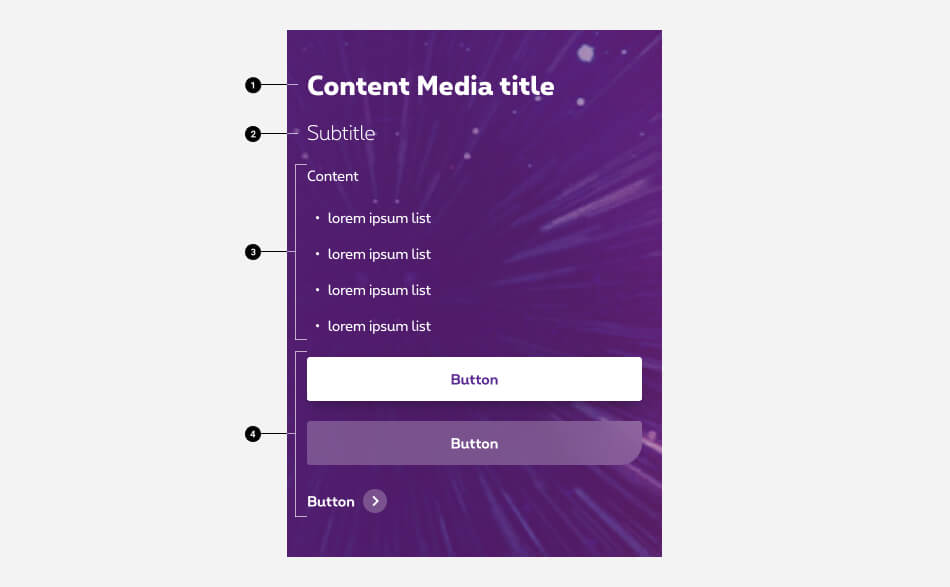

Anatomy
Here is a quick overview of what a content media contains to better understand this documentation. This case shows all the content possible inside a content media but all of the elements are optional except the title which is mandatory. The order of those elements is predefined and you can’t swap places.
- Title (mandatory) Explore headings specificities within our Design System.
- Subtitle
- Free content
- Buttons Always comes last in the content media. You can use a primary, secondary and/or a tertiary button.
Compositions
There are three types of content medias: extended image, extended content and background visual. Visual can either be placed on the left or on the right. They all have exactly the same structure and elements.

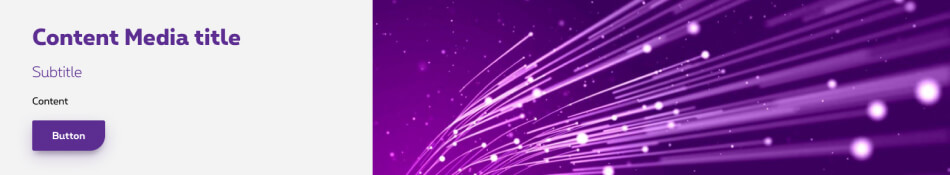

Extended image
The visual takes more space and goes from the middle to one border of the screen. The content can be put in a colored panel.

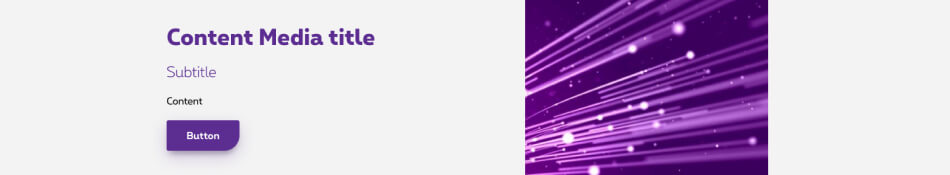

Extended content
Emphasis on the content, the visual is smaller and fits into an imaginary box. The content can be put in a colored background. It is possible to display a video instead of a visual.

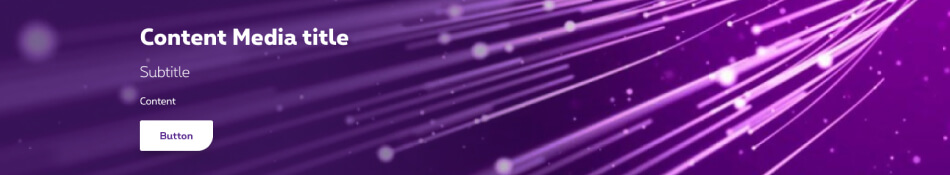

Background visual
Visual takes the whole width of the screen and appears behind the content.
There are no specific guidances on which composition to use, it’s up to your designer eye.
Gridding

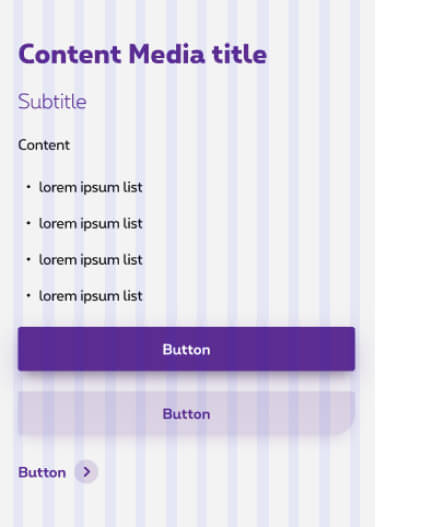

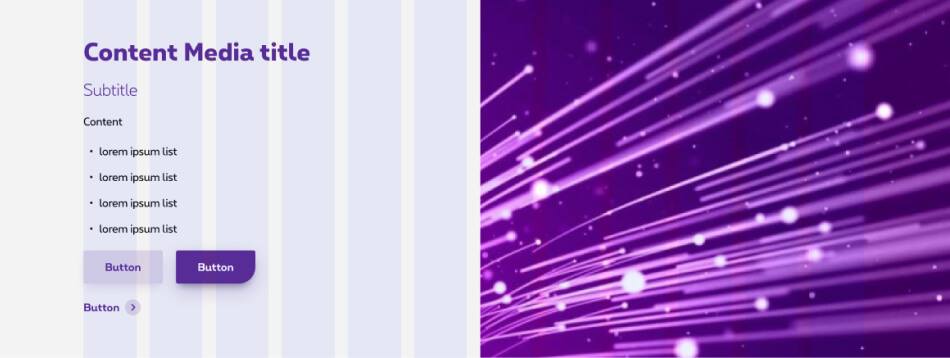

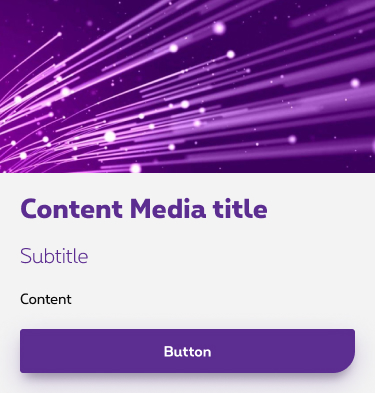

Content media are sections that take the entire width of the screen, only the content is in a gridding. Content can be put at the left or at the right and either take 6 grids or 4 in desktop. In mobile, content always takes 12 grids.
Options

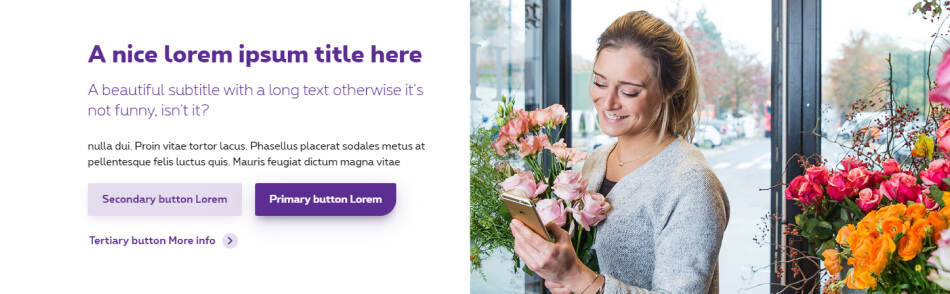

Content without colored background
The content can be put in a colored panel/background, but you can also display it without any background color.

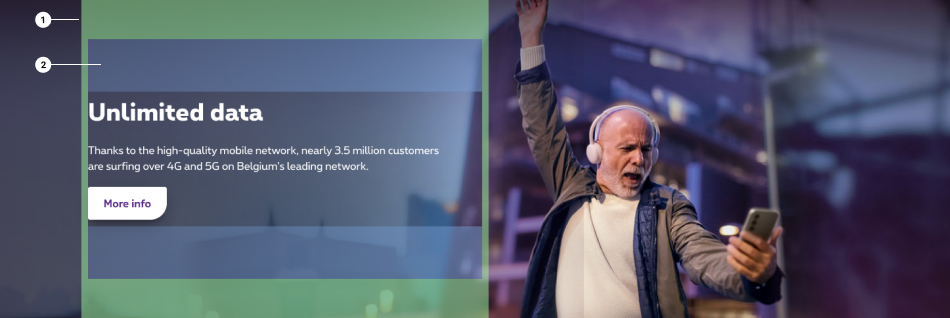

Big version
For a more immersive content media, there's the possibility to add extra spaces above and below the content: 80px on top and bottom in desktop (not allowed on mobile).They will give more space to the visual. The big version better works with small content to keep this immersive effect.
- Content media spacings (by default)
These spacings can't be removed and are by default surrounding the content. - Extra spacings for big content media
They come just above and under the content of the component, before the default Spacings.

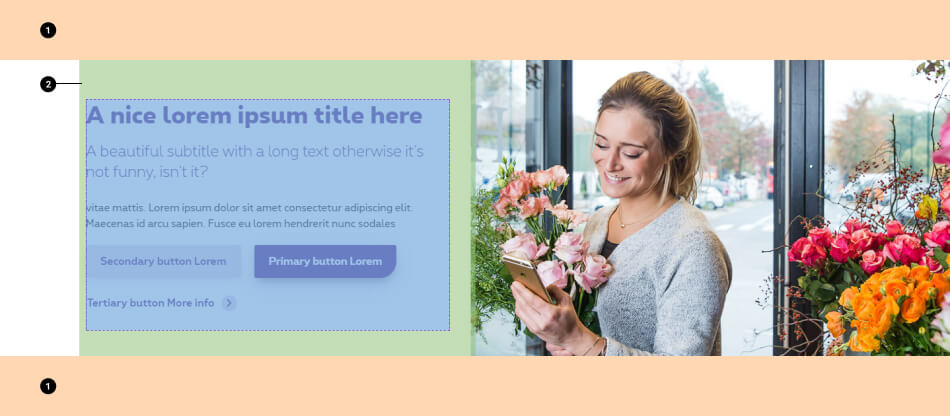

Additional spacings
Spacings are incorporated inside the content media component, before and after the content. They do not surround the visual. Meaning if you put two content medias under each other, the content will be separated by the spacings around the content but the visuals will stick to each other. You can decide whether you want to add additional spacings between the two sections or if you want to keep it as is.
- Additional spacings (optional)
They come above and under the content media section - Content media spacings (by default)
These spacings can't be removed and are by default surrounding the content.
Accessibility
In most cases the content and the medias are separated and do not overlap so there should be no accessibility issue. But if using the full background image please make sure everything is accessible.
In this component, HTML elements are added on top of the image. This content is in positive or negative mode and this affects the creation of the image. Image colors should be carefully considered, with legibility and accessibility as paramount concerns.
Our websites and applications have to be accessible, meaning perceptible, operable, understandable and robust for users with disabilities. Discover here our accessibility guidance.
The visual presentation of text has a contrast ratio of at least 4.5:1. Success criterion 1.4.3 Contrast

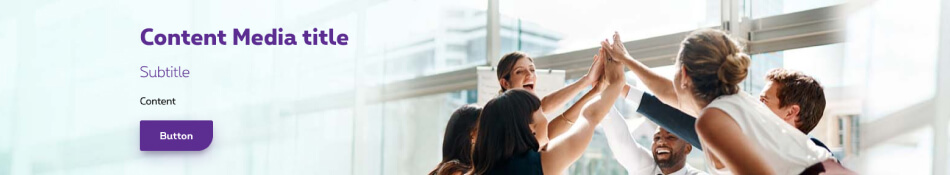

Positive mode
Negative mode
How to
Please use the template and respect the following guidances:
- Choose the correct template (default, extended or background) and correct orientation (left or right).
- Respect the margins and safe areas in the template.
- Produce a visual for mobile (-s), tablet (-m) and desktop (-l).
- If using the full background image content media make sure people's faces are not behind the content and that it is still readable
- Test your visuals and adapt if needed
You're part of Proximus organization? Go to the template - If not, request it
Technical specifications
Please respect the following specifications when you export the images:
Breakpoints | Size | Max weight | Format |
---|---|---|---|
Mobile (-s) | 640x400px | 50KB | .jpg |
Tablet (-m) | 1024x600px | 120KB | .jpg |
Desktop (-l) | 2560x600px | 150KB | .jpg |
To ensure good UI quality and website performances, it's very important to respect the maximum weight indicated while keeping a correct image quality. Discover here our images compression recommendations.

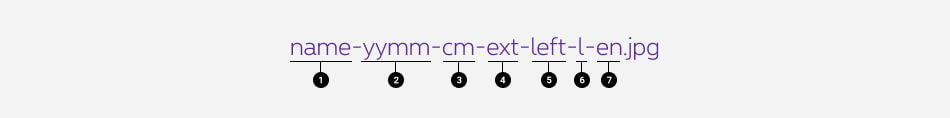

Naming convention
Please respect the following naming convention:
- Name Description of the visual, campaign or content
- Date yymm= year month (2108= August 2021)
- cm meaning content media
- ext or bg (optional) For when you use an extended or background content media
- Left or right If your visual is on the left or on the right. Same logic applies for the background visual, choose left or right depending on where the important information of your visual will be situated
- Breakpoint mobile (-s), tablet (-m), desktop (-l)
- Language English by default (-en), French (-fr), Dutch (-nl)
Images testing
Testing your image(s) is an important step of the images creation. It allows you to test the behavior in all breakpoint and to ensure the quality of the end results.
Discover here our images testing recommendations
