Category boxes

Fully clickable boxes that already give you some info such as title, subtitle, prices, content...

last modified: 01/01/1601 01:00:00

Overview

The category box is a panel acting like an entry point. There are no CTAs as it is fully clickable. It can contain a title, icons, content text, prices and promo patches.

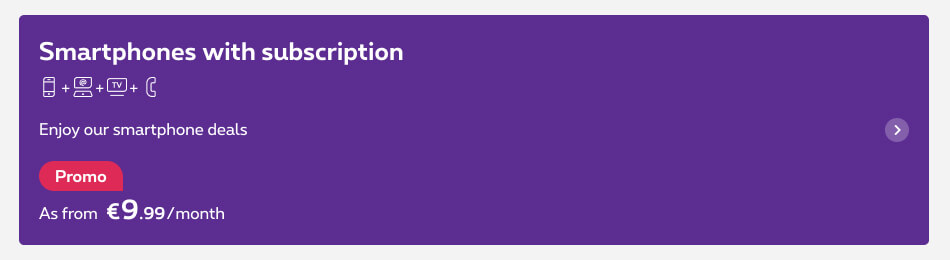

Desktop

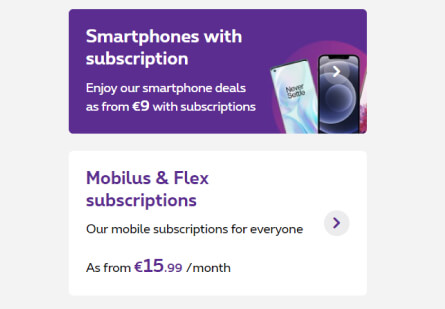

Mobile

Live demo (For Proximus employees)

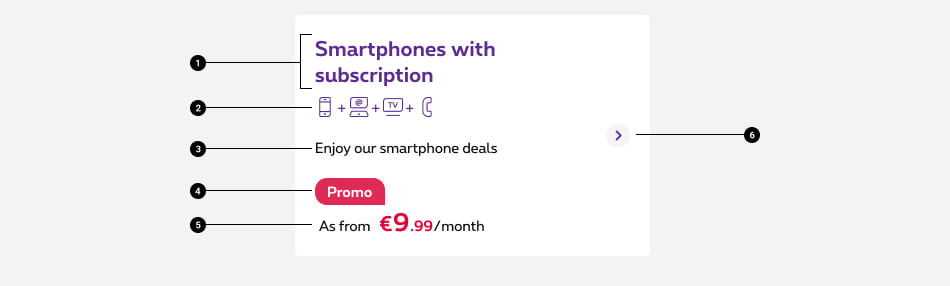

Anatomy

Here is a quick overview of what a category boxe contains to better understand this documentation:

  1. Title
    The title is mandatory and either in positive (purple) or negative (white)
  2. Icons
    Icons are optional in the category boxes and are either in positive (purple) or negative (white)
  3. Content
    Content is optional and either in positive (black) or negative (white). Copy should be brief
  4. Patch
    Patch is optional
  5. Price
    Price is optional. It can be a default price in positive (purple) or negative (white). Or a promo price in positive (promo red) or negative (promo red or white)
  6. Arrow
    The arrow is always at the right and middle of the category boxe. It indicates that the boxe is clickable without a CTA.

Gridding

Gridding usage

The composition options are based on our default grid. Please refer to the gridding article for more information.

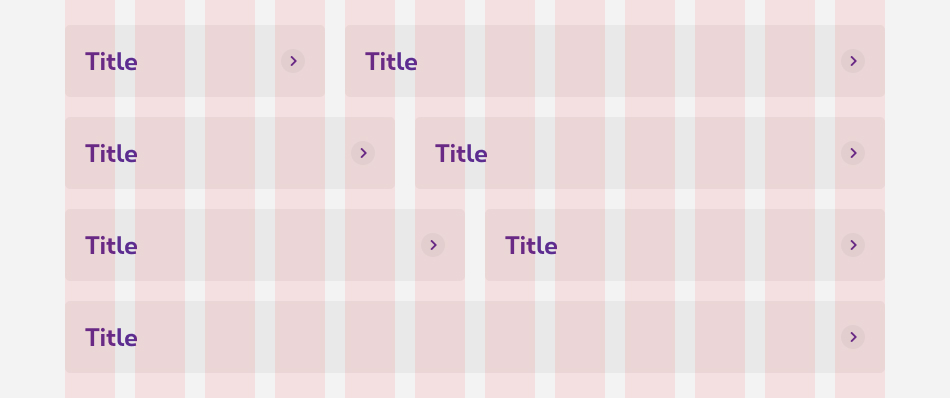

You can have a maximum of 3 category boxes per row in desktop.

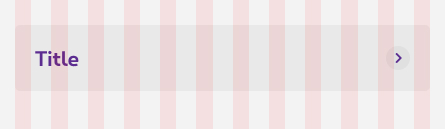

In mobile you can only use one category box per row on a grid 12.

Desktop
Mobile

Accessibility

In this component, HTML elements are added on top of the image. This content is in positive or negative mode and this affects the creation of the image. Image colors should be carefully considered, with legibility and accessibility as paramount concerns.

Accessibility - Contrast is the most important consideration

Our websites and applications have to be accessible, meaning perceptible, operable, understandable and robust for users with disabilities. Discover here our accessibility guidance.

The visual presentation of text has a contrast ratio of at least 4.5:1. Success criterion 1.4.3 Contrast

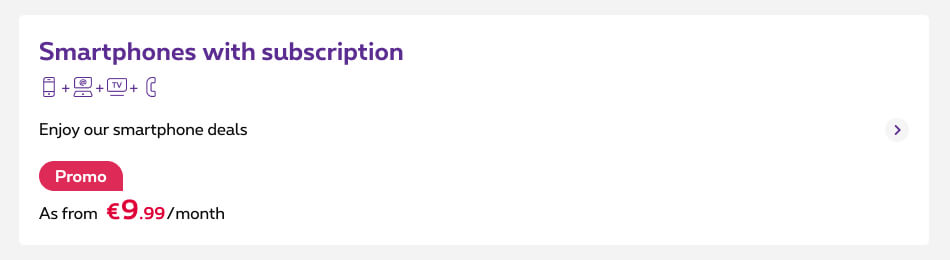

Positive mode
Negative mode

Best practices

Respect the margins and safe areas in the template and make sure that the main content isn’t placed behind the title, copy or the arrow (e.g.: main character, faces, devices, objects).

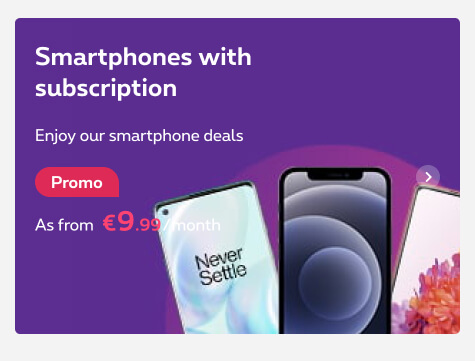

Don't

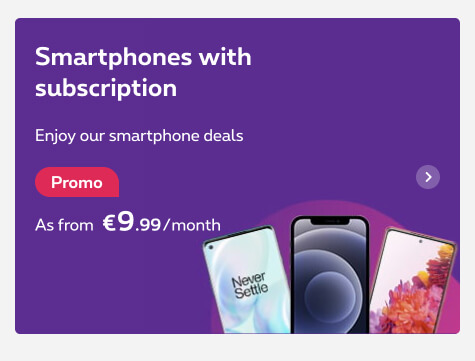

Do

last modified: 01/01/1601 01:00:00

How to

Please use the template and respect the following guidances:

  1. Respect the margins and safe areas in the template
  2. Chose the visual according to the gridding (only for desktop since there's only one visual for mobile).
  3. Modify height of the template if needed but make sure the visual is still high enough in all languages to ensure quality
  4. People's faces are not behind the text or the arrow. The copy can't be in a different gridding so make sure you have enough space for the visual.

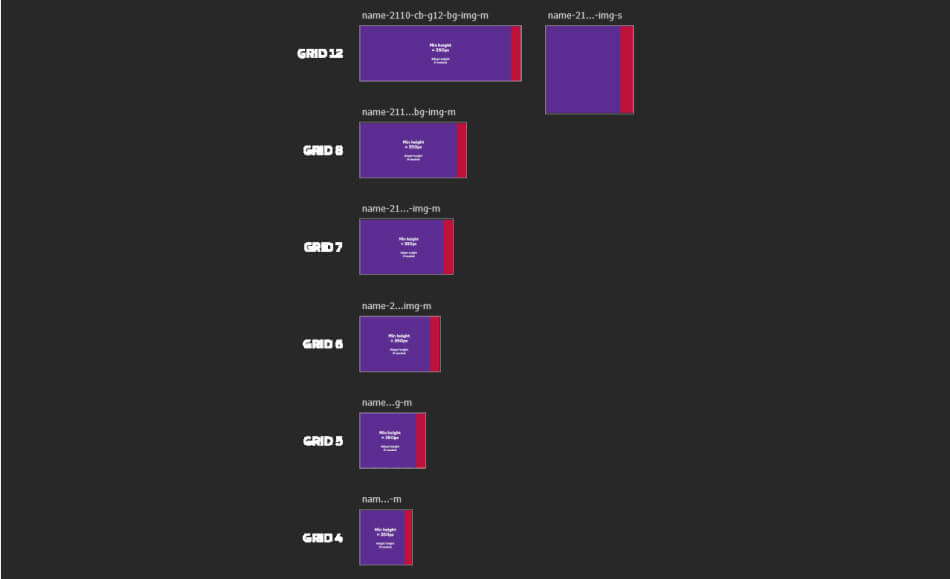

Template download

You're part of Proximus organization? Go to the template - If not, request it


Technical specifications

Please respect the following specifications when you export the images:

Category box - background image
Breakpoints Size Max weight Format
Mobile (-s) 640x600px 80KB .jpg
Tablet & Desktop (-m) Depending on the gridding 80KB .jpg
How to compress images

To ensure good UI quality and website performances, it's very important to respect the maximum weight indicated while keeping a correct image quality.
Discover here our images compression recommendations.

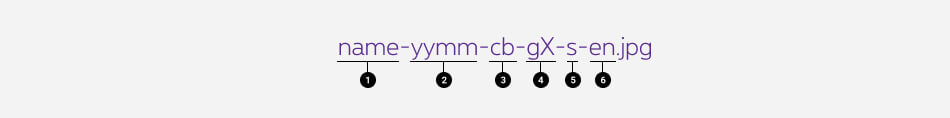

Naming convention

Please respect the following naming convention:

  1. Name
    Description of the visual, campaign or page
  2. Date
    yymm = year month (2108 = August 2021)
  3. cb
    stands for category box
  4. Gridding
    gX = Gridding + Number of the gridding
  5. Breakpoint
    mobile (-s), tablet & desktop (-m)
  6. Language
    English by default (-en), French (-fr), Dutch (-nl). If it exists in only one language, it isn't mandatory to specify.

Images testing

Testing your image(s) is an important step of the images creation. It allows you to test the behavior in all breakpoint and to ensure the quality of the end results.

Discover here our images testing recommendations
